Anti-Termite Reticulation System – Complete Guide for Long-Term Termite Protection
In termite-prone regions like Udupi, Manipal, Mangalore, Kundapura, and coastal Karnataka, termite infestation is one of the biggest threats to buildings. Termites silently damage foundations, wooden structures, door frames, wardrobes, and even electrical conduits—often before homeowners realize the problem.
Traditional termite control methods involve drilling walls and injecting chemicals, which damages interiors and offers only short-term relief.
This is where the Anti-Termite Reticulation System becomes the most advanced, long-term, and professional termite protection solution.
At Imperial Pest Control, we strongly recommend this system for new constructions and long-term property protection.
What Is an Anti-Termite Reticulation System?
An Anti-Termite Reticulation System is a permanent network of porous (micro-perforated) pipes installed at the plinth and foundation level of a building. These pipes allow controlled and uniform release of termiticide into the surrounding soil, forming a continuous chemical barrier against subterranean termites.
The biggest advantage is that the system is refillable—future termite treatment can be done without drilling walls or breaking tiles.
How the Anti-Termite Reticulation System Works
- Porous pipes are installed along internal and external walls.
- Pipes are placed 4–5 inches below DPC (Damp Proof Course) level.
- Each pipe has 50–100 micro-holes per meter.
- Termiticide is injected through junction boxes.
- Chemical flows through the pipe and exits via micro-holes.
- A uniform underground barrier is created that blocks and kills termites.
This system is especially effective in red soil, laterite soil, sandy soil, and coastal belt areas of Karnataka.
Key Components of the Reticulation System

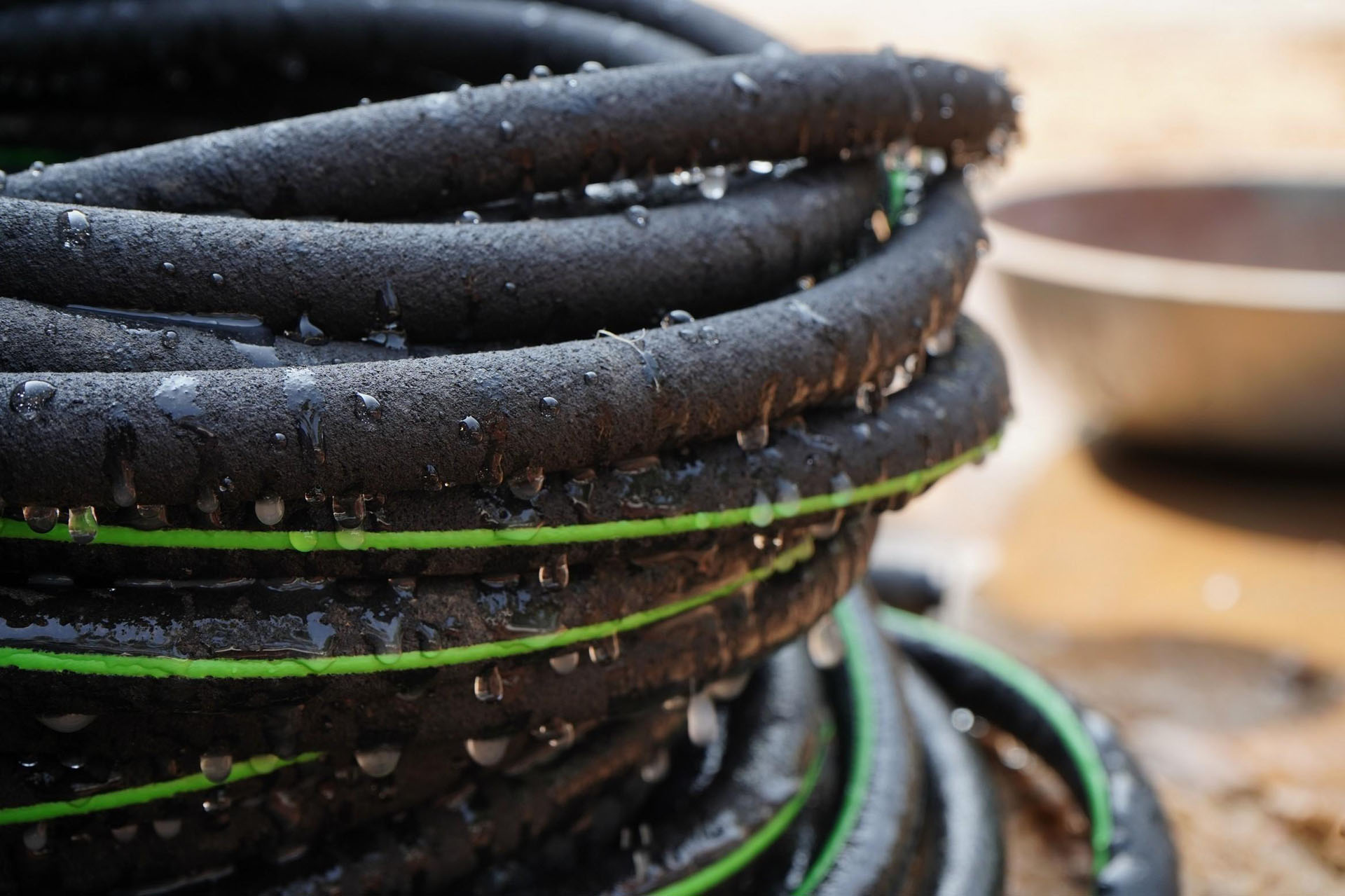

Porous Pipes
- Micro-perforated for uniform flow
- Available in light-duty, standard, and heavy-duty variants
- Designed for long-term underground installation
Junction Boxes
- Used for pesticide injection and recharging
- Recommended 1 junction box per 400–500 sq. ft.
- Installed 1–1.5 feet above ground level, usually outside the house
Pipe Accessories
- Connectors (12 mm / 16 mm)
- Elbows
- Tees
- End stoppers (to control pesticide direction)
Sand Covering
- Pipes must be covered only with sand
- Cement or soil blocks micro-holes and must be avoided
Types of Porous Pipes Used
Light-Duty Porous Pipe
- Used under tiles or PCC
- Medium flow rate
- Suitable for bathrooms, kitchens, utility areas
Standard Porous Pipe (Most Recommended)
- Ideal for residential homes in Mangalore & Udupi
- Suitable for PCC and soil at plinth level
- Balanced thickness and flow
Heavy-Duty Porous Pipe
- High weight-bearing capacity
- Best for commercial buildings, apartments, hotels
- Longest lifespan and uniform chemical distribution
Where the System Can Be Installed
✅ Pre-construction stage (best option)
✅ Ground floor (soil/sand level)
✅ Plinth level of buildings
✅ Independent houses, villas, apartments
❌ First floor or upper floors
❌ Inside cement mortar or tile joints
Advantages of Anti-Termite Reticulation System
✅ No wall drilling or tile damage
✅ Odour-free termite treatment
✅ Safe for children, elderly & asthma patients
✅ Uniform chemical spread
✅ Easy re-treatment every 3–5 years
✅ Long lifespan (20–30 years)
Ideal for pest control services in Udupi & Mangalore
Reticulation System vs Traditional Termite Treatment
| Feature | Reticulation System | Conventional Treatment |
|---|---|---|
| Wall Drilling | ❌ No | ✅ Yes |
| Re-treatment | Easy | Difficult |
| Chemical Spread | Uniform | Uneven |
| Smell & Mess | Minimal | High |
| Long-Term Cost | Lower | Higher |
⚠️ Always use CIB-approved pesticides and trained professionals.
- Maintenance & Recharging
- Initial charging during installation
- Recharging every 3–5 years
- Annual inspection recommended
Why Choose Imperial Pest Control?
- Experienced in Anti-Termite Reticulation Systems in Mangalore & Coastal Karnataka
- Use of high-quality porous pipes
- Trained & licensed technicians
- Suitable for homes, villas, apartments, hotels, hospitals
- Transparent pricing & long-term support
Conclusion
If you are building a new house or want permanent termite protection, the Anti-Termite Reticulation System is the best investment you can make. It protects your structure without damaging interiors and provides long-term peace of mind.
